About GKS Pumps

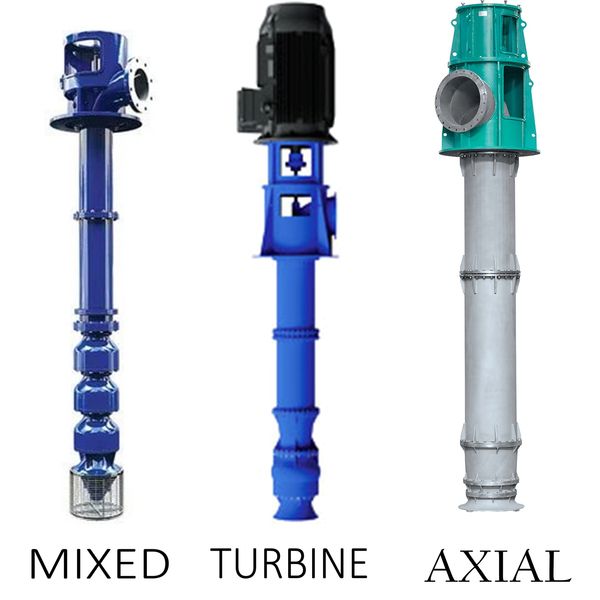

VT PUMP

Mixed flow pumps / axial flow vertical turbine pumps. This

Range of vertical pumps offer widest range of selection

Depending upon the pumping liquid from clear water to

Varying degrees of contamination. Hydraulic design of these

Pumps is based on most valuable and up to date technologies

And experience available in the field. These pumps are

Designed to operate at 50hz of 60hz, single or more than

Capacity (Maximum) : 35,000 M /hr.

Head (Maximum) : 300 m

Temperature : 95 C

Working Pressure : 35 kg/cm2

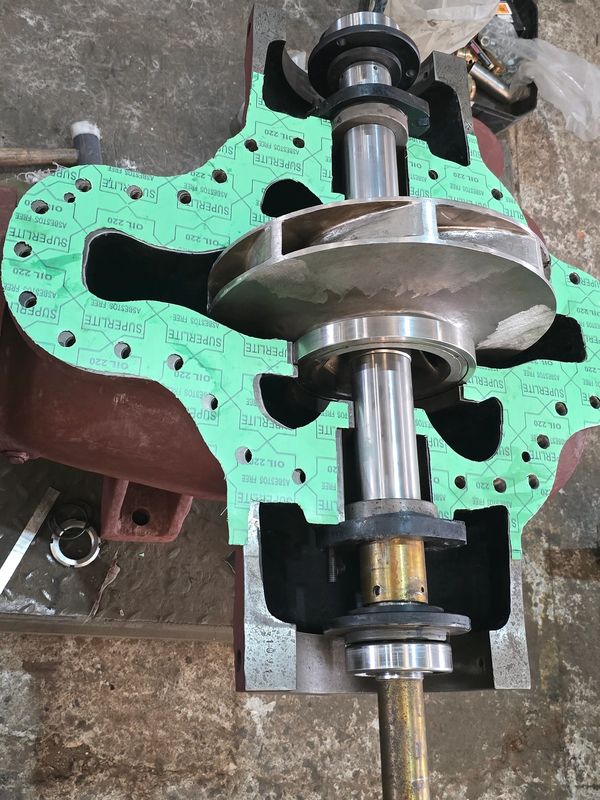

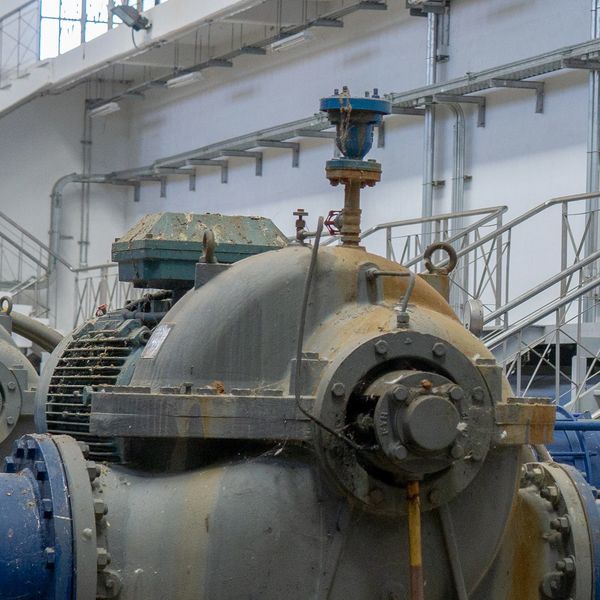

Split Casing Pumps Double Suction Split Casing Pumps Single Suction 2 Stage

This range provides a higher efficiency with lower

manintenance.

Development of this new range followed an extensive

consultation with major users. this has produced an advanced

pump which provides total reliability and reduced life cycle cost.

this pump can be installed as

Capacity (Maximum) : 22,000 M /hr.

Head (Maximum) : 180 m

Temperature : 110 C

Working Pressure : 18 kg/cm2

VERTICAL SUMP PUMPS

Closed type and semi-open type impeller designs are

Offered to handle a variety of liquids. Impeller and casing

Are designed for maximum hydraulic efficiency and

Minimum thrust on rotating assembly. Unique space-

Saving design due to vertical mounting of pump.

Impeller and casing are totally submerged in liquid so no

Priming or air venting is required. Inside tank and

Outside tank mounting designs available for respective

Applications.

Capacity (Maximum) : 600 M /hr.

Head (Maximum) : 100 m

Temperature : 80 C

Working Pressure : 10 kg/cm2

Horizontal Mixed-Flow Pumps

The GSMF series are single-stage centrifugal pumps

Suitable for handling pure or contaminated liquids in

Arge quantities. These pumps are of robust

Construction and have long working life. These pumps

Are highly efficient resulting in low energy consumption.

Capacity (Maximum) : 7,000 M /hr.

Head (Maximum) : 45 m

Temperature : 50 C

Working Pressure : 4 kg/cm2

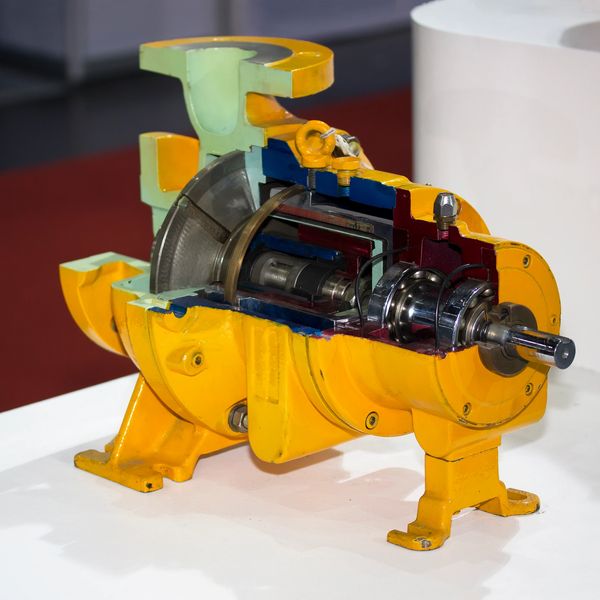

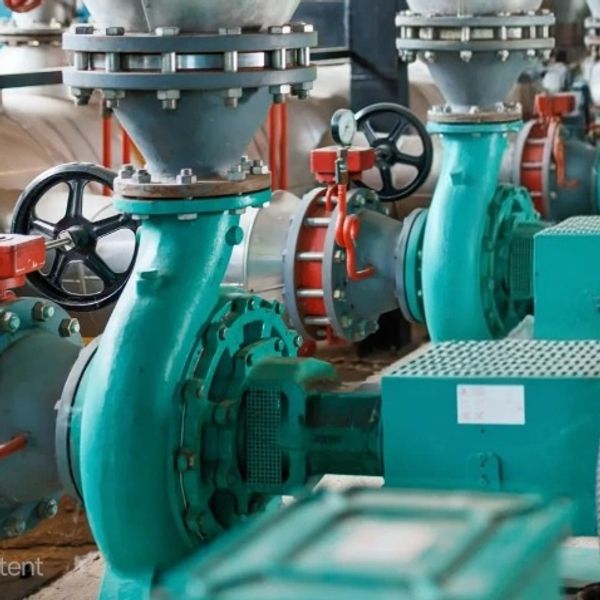

Process Pumps

Making it ideal for worldwide chemical or industrial process

Applications. Back pull out design permits quick and easy

Access to rotating parts without disturbing suction and

Discharge pipes, electric motor, its connections and

Alignment. The pump is designed to achieve a low npsh

Requirement and high efficiency. It is rugged in construction

And is versatile in application.

Capacity (Maximum) : 1000 M /hr.

Head (Maximum) : 140 m

Temperature : 160 C

Working Pressure : 14 kg/cm2

Torque Flow Pumps

The pump is very suitable where normal stock pumps cannot

Handle liquids due to plugging or abrasive wear. The principal

of the hydrodynamic liquid coupling is used for the energy

Transfer to the pumping liquid. The impeller generates a

Whirlpool in the casing and this whirlpool acts as a pumping

Element (impeller) in the casing.

Capacity (Maximum) : 1500 M /hr.

Head (Maximum) : 100 m

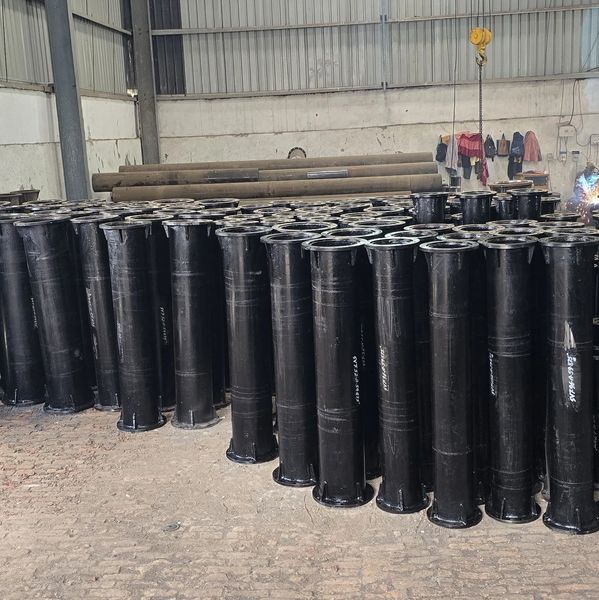

MS Column Pipe

The MS Column Pipe is a durable and reliable product designed for industrial applications. Made of high-quality black metal, these pipes are built to withstand heavy-duty use. Perfect for supporting structures and providing stability, these pipes are essential for any manufacturing operation. Trust in our quality craftsmanship for all your pipe needs.

Capacity - 2" and Above

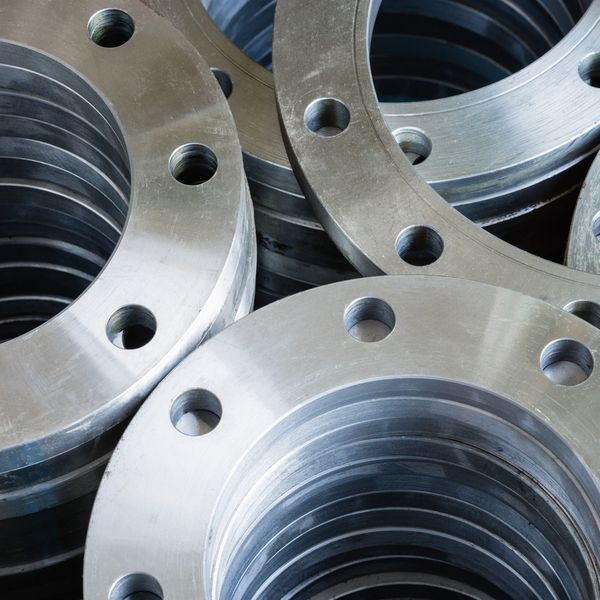

Flanges

Our high-quality flanges are expertly crafted for precision and durability. Designed with evenly spaced bolt holes for easy installation, these silver metal flanges are perfect for industrial applications.
